TMC Semiconductor TM50G03NF: An Ideal Choice for Core Brushless DC Motors in Floor-Cleaning Robots
In today's fast-paced life, smart home devices have become powerful assistants for improving the quality of life. Among them, floor-cleaning robots, with their efficient cleaning capabilities and intelligent working modes, are increasingly favored by consumers and gradually becoming a standard in modern families.
The strong cleaning effect of floor-cleaning robots is largely attributed to their core component, the brushless DC motor. And in the operation of brushless DC motors, MOSFETs play a pivotal role.
In brushless DC motors, the primary function of MOSFETs is to act as key switching elements. By precisely controlling the turn-on and turn-off of MOSFETs, the current in the motor windings can be efficiently controlled, thereby enabling the motor to start, run, and stop smoothly. Moreover, MOSFETs also have PWM speed regulation functionality. By adjusting the duty cycle of the pulse width modulation signal, the motor's speed can be accurately adjusted to meet the needs of different cleaning scenarios. For example, increasing the speed when cleaning carpets to enhance cleaning power, and reducing the speed when cleaning wooden floors to avoid damaging the floor.
Meanwhile, MOSFETs also take on the important task of overcurrent protection. When the motor encounters abnormal situations such as overload or stalling, leading to a sharp increase in current, MOSFETs can respond quickly to cut off the circuit, protecting the motor and other circuit components from damage caused by excessive current, which greatly improves the reliability and service life of the motor.
When selecting MOSFETs for the brushless DC motors of floor-cleaning robots, engineers need to comprehensively consider several key factors to ensure optimal circuit performance.
On-resistance is one of the important indicators to measure the performance of MOSFETs. A lower on-resistance means that the MOSFET generates less power loss when current passes through it. This not only improves the operating efficiency of the motor and reduces energy waste but also reduces the heat generation of the MOSFET, extending its service life. In floor-cleaning robots, the battery life is crucial. Reducing the on-resistance of the MOSFET can effectively improve energy utilization and extend the battery's working time, allowing the floor-cleaning robot to work more durably.
Brushless DC motors generate large inrush currents at the moment of starting and when encountering high resistance. Therefore, MOSFETs need to have sufficient current-carrying capacity to cope with these instantaneous large current impacts. High current-carrying capacity not only ensures the stable operation of the motor under various working conditions but also enhances the motor's anti-stall capability, preventing the motor from being damaged due to excessive current.
During the operation of floor-cleaning robots, due to the heat generated by motors and circuit components, as well as temperature differences in different usage environments, MOSFETs will face varying temperature conditions. Therefore, MOSFETs with a wide junction temperature range can better adapt to various complex working environments, ensuring stable performance whether in hot summers or cold winters. This is of great significance for improving the reliability and applicability of floor-cleaning robots.

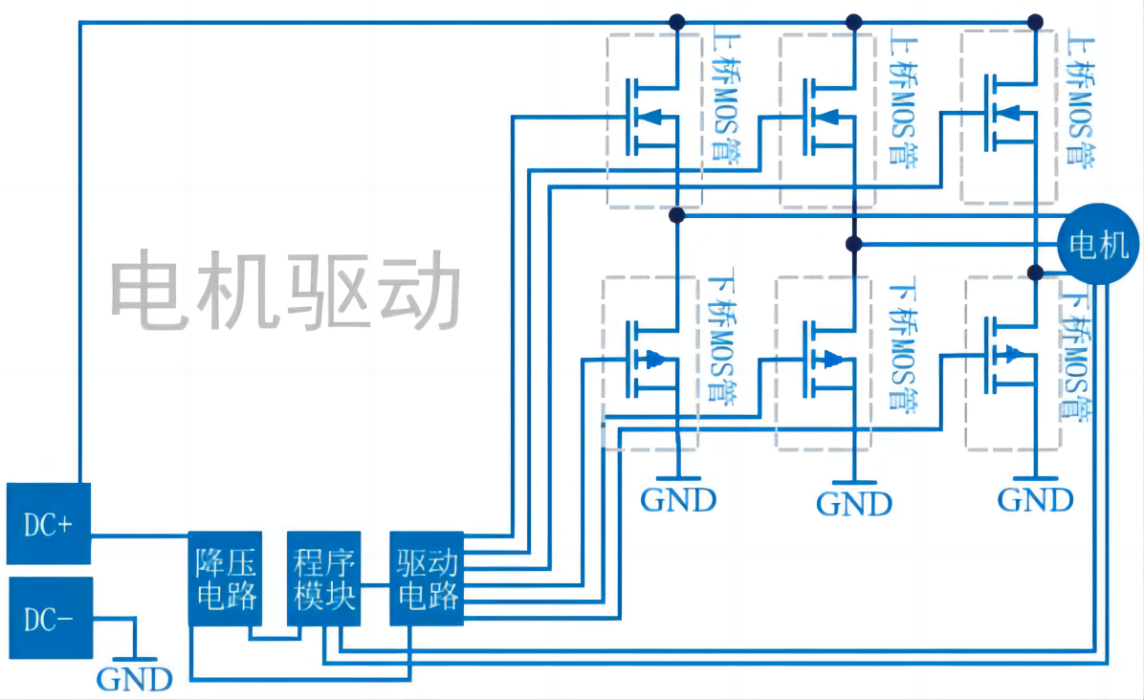

TMC Semiconductor TM50G03NF - An Excellent Choice for Three-Phase Drivers
As a well-known enterprise focusing on the field of medium and low-voltage MOS, TMC Semiconductor's TM50G03NF product demonstrates many significant advantages in three-phase driver applications, providing an ideal solution for performance upgrades of floor-cleaning robots.
As a well-known enterprise focusing on the field of medium and low-voltage MOS, TMC Semiconductor's TM50G03NF product demonstrates many significant advantages in three-phase driver applications, providing an ideal solution for performance upgrades of floor-cleaning robots.
The on-resistance of the N-channel of TM50G03NF is as low as 7mΩ, and that of the P-channel is 10mΩ. Such low on-resistance significantly reduces the power loss of the MOSFET itself during current transmission. Taking high-power floor-cleaning robots as an example, the lower on-resistance can effectively improve the working efficiency of the motor, reduce energy consumption, and thus extend the battery life. This means users do not need to charge frequently, and the floor-cleaning robot can complete a larger area of cleaning tasks at one time, greatly improving the convenience of use.
TM50G03NF has excellent high current-carrying capacity, with a peak current (IDM) of up to 150A. This strong current-carrying capacity enables the motor to easily cope with inrush currents at the moment of starting and when encountering high resistance, ensuring stable operation of the motor. During the cleaning process of floor-cleaning robots, it is inevitable to encounter obstacles such as carpet edges and thresholds. At this time, the motor needs to output a large torque instantly to overcome the resistance. The high current-carrying capacity of TM50G03NF can provide sufficient power support for the motor, effectively preventing the motor from stalling due to insufficient current, and ensuring the cleaning effect and working stability of the floor-cleaning robot.
TMC Semiconductor has conducted strict 100% UIS testing and 100% Rg testing on TM50G03NF. UIS testing, i.e., single-pulse avalanche energy testing, can ensure that the MOSFET has good avalanche breakdown tolerance when facing instantaneous high-voltage impacts, and will not be damaged due to voltage mutations. Rg testing is a test on the gate resistance of the MOSFET, ensuring the consistency and stability of the gate resistance, so as to ensure that the MOSFET can accurately and quickly respond to control signals under different working conditions. TM50G03NF, which has passed these two strict tests, performs excellently in terms of reliability, greatly reducing the failure rate of the product during use and providing users with a more reliable experience.
Wide Junction Temperature Range, Wide Adaptability
The product junction temperature range of TM50G03NF is between -55℃ and 175℃. This wide temperature adaptation range enables it to work normally in various extreme environments. Whether in the cold winter in the north with low indoor temperatures, the hot summer in the south with high indoor temperatures, or in some special usage scenarios such as high-temperature kitchens or low-temperature storage rooms, TM50G03NF can maintain stable performance, ensuring that high-power floor-cleaning robots are not affected by ambient temperatures and always operate efficiently and reliably.
To sum up, TMC Semiconductor's TM50G03NF, with its significant advantages in on-resistance, current-carrying capacity, reliability, and junction temperature range, has become the preferred solution for driving brushless DC motors in floor-cleaning robots. It can not only effectively improve the performance and reliability of floor-cleaning robots but also bring users a more convenient and efficient cleaning experience, helping the smart home industry move to a higher level of development.
