I. Industry Background

In today's vibrant electronic world, RGB controllers are playing a crucial role. From LED displays to smart lighting devices, from ambient light strips to electronic toys, RGB controllers enable various devices to present ever-changing color combinations, bringing us a series of visual feasts. Behind this colorful world, there is a low-key yet indispensable key component - the MOS tube, which is the core driving force for RGB controllers to achieve precise color control.

II. Unique Advantages of TM15N06S

(1) Excellent Electrical Performance

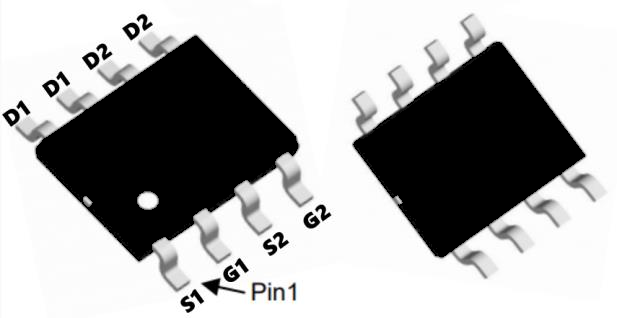

TMC Semiconductor's TM15N06S is a high-performance MOS tube with an N-channel internal resistance of less than 28mΩ. This excellent low internal resistance characteristic allows it to exert great advantages in RGB controllers. Low internal resistance means less loss when current passes through, thereby resulting in greater output power. In practical applications, this enables RGB controllers to drive more LED beads, achieving richer color performance and brighter display effects. At the same time, the reduction in power consumption not only saves energy but also reduces device heating, improving the stability and reliability of the system.

In addition, TM15N06S also features low conduction voltage drop and high switching efficiency. The low conduction voltage drop can effectively reduce energy loss in the on-state, further improving energy utilization efficiency; high switching efficiency enables the circuit to quickly respond to control signals, achieving rapid color switching and precise adjustment. In scenarios with high requirements for color change speed, such as stage lighting effects and dynamic lighting effects of e-sports equipment, TM15N06S can ensure smooth color changes without delay, bringing users a more shocking visual experience. Moreover, its IDM can reach 46A, and the strong current-carrying capacity ensures that the RGB controller can still work stably under high load conditions, meeting the needs of different application scenarios.

(2) High Reliability and Precise Control

In the application of RGB controllers, reliability is crucial. TM15N06S has high reliability and good impact resistance, and can operate stably in complex electrical environments. Whether facing voltage fluctuations, electromagnetic interference, or instantaneous current impacts, it can handle them calmly, ensuring the normal operation of the RGB controller. This feature enables RGB devices to maintain stable color performance in various usage scenarios, reducing problems such as color abnormalities or device damage caused by component failures.

At the same time, TM15N06S also has the ability to precisely adjust and modulate signals. In RGB controllers, accurate signal adjustment is the key to achieving delicate color transitions and rich color combinations. TM15N06S can accurately adjust the output current and voltage according to the input control signal, thereby achieving precise control of the brightness and color of LED beads. Whether it is a soft gradient effect or a strong color contrast, it can be accurately presented, creating an ideal visual atmosphere for users.

(3) Strict Testing, Quality Assurance

To ensure that every TM15N06S can meet high-quality standards, TMC Semiconductor has conducted strict testing on it. 100% UIS testing ensures that the MOS tube has super strong tolerance, and can still work stably and reliably even under extreme working conditions, such as instantaneous high-voltage impacts or large current overloads, without "dropping the ball". At the same time, 100% Rg testing monitors the stability of the gate resistance throughout the process, ensuring that the switching characteristics of each TM15N06S are highly consistent. This strict testing process makes the quality of TM15N06S far exceed that of its peers, becoming a reliable choice in the field of RGB controllers.

(4) Wide Environmental Adaptability

Electronic devices are used in a wide range of environments, from cold polar regions to hot tropical deserts, from humid coastal areas to dry inland plateaus, TM15N06S can adapt. Its product junction temperature range is from -55℃ to 175℃, which means it can work stably in any harsh temperature environment. In cold environments, it will not experience performance degradation or failure due to low temperatures; in high-temperature environments, it can also maintain good electrical performance, ensuring that the RGB controller can operate normally in various environments, bringing users consistent color experience.

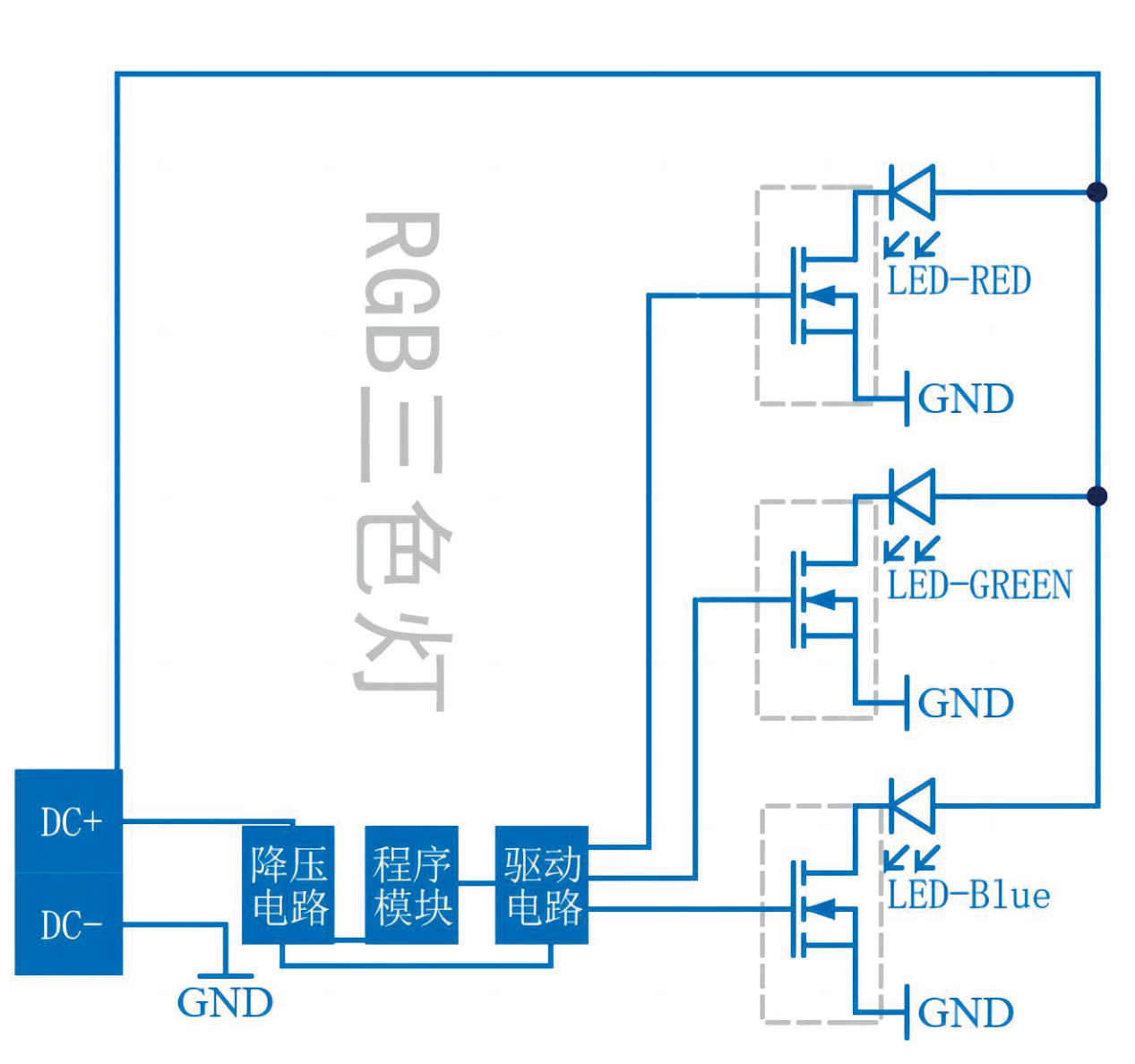

III. Schematic Circuit Diagram
